Choosing your hood
- Choose the right width: for efficient extraction, the hood should be at least as wide as the cooktop. In addition, by choosing the right width, you avoid the deposits of grease on the credence and the walls of the kitchen.
- Place it well: the minimum distance between the hob and the hood is 55 cm for the electric and 65 cm for the gas. However, do not exceed 80 cm to ensure efficient suction of cooking vapors.
- Choose the right power: in an open kitchen, where the air circulates in the living room, always opt for a extractor hood of at least 600 m3/h to guarantee optimal efficiency. For a closed kitchen, multiply the volume (L x W x H) by 12 to obtain the necessary suction capacity.
The features of your hood
- Type of hood: ilot, adds a modern aesthetic touch to the kitchen, freeing up the wall space and offering an efficient extraction of smoke and cooking odors. It creates an elegant and functional point above the cooking island, thus improving the culinary experience and the overall design of the kitchen.
- Suction system: evacuation and recycling, opt for versatility! Efficiently deport vapours to the outside or offer yourself the ability to purify the air with an advanced filtration system. Enjoy a clean, fresh kitchen, no matter what your suction system!
- Type of suction: standard, designed to efficiently suck vapors and odors directly from the cooking area. Enjoy a fresh and clean kitchen with advanced filtration!
- Width: 180 cm, for a cooking area of up to 120 cm of width.
- Colors : black
Power of the hood
- Number of engine included: 1
- Total power of the engine(s): 270 W
- Engine type: classic, offers reliable and proven performance. Their simple and robust design ensures efficient extraction of cooking vapors, ensuring a clean and comfortable kitchen environment. It is generally more affordable, an economical solution without compromising on quality.
- Stop timed: yes, allows to program a duration of operation after cooking. Once this time has passed, the hood turns off automatically, providing a convenient way to save energy and prolong the purification of the air after cooking.

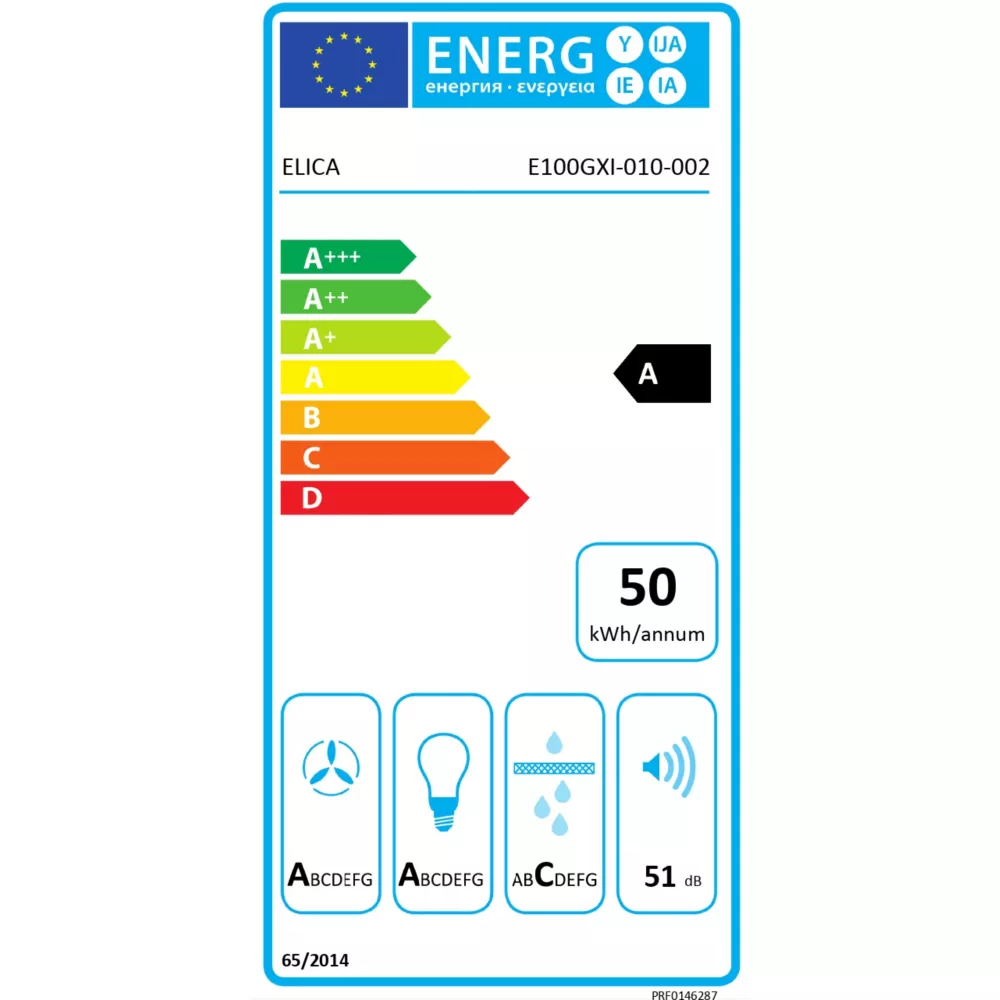

Legal notices
- Annual energy consumption in kWh (present on the Energy Label): 50
- Vapour and smoke evacuation efficiency class (present on the Energy Label): A
- Lighting efficiency class (present on the Energy Label): A
- Fat filtration efficiency class (present on the Energy Label): C
Orders of your hood
- Selector type : push button
- Location : below
- Number of suction speeds: 3, allows precise control of the air extraction, adapting to the different cooking intensities. It offers flexibility to adjust power as needed, reducing noise and energy consumption when less extraction is enough.
- Fat filter saturation indicator: yes, alert when it is time to clean or replace the filter. This ensures optimal operation of the hood, extending its lifespan and ensuring efficient grease extraction, thus preserving the air quality in the kitchen.
The lighting of your hood
- Lamp: yes, offers increased visibility on the cooking area, facilitating the preparation of meals. It creates a pleasant atmosphere in the kitchen and highlights the worktop, adding an aesthetic touch.
- Lighting type: LED, offers an equivalent or even greater brightness to the halogens, with a considerably reduced energy consumption and a much longer lifespan.
- Location of the lighting : background
- Number of lamp(s) : 1
- Lighting power : 7 W
- Light intensity: 365 lux, the higher the number of lux, the brighter the area.
- Color temperature: 3500 K, measures the tint of light emitted by a light source. The lower the value, the warmer the light (yellow/orange), while a high value corresponds to a colder light (blue/white).
The filtration of your hood
- Fat filter: yes, traps the particles of fat present in the cooking vapours, thus preventing their accumulation in the hood and ducts. This keeps the hood clean and prolongs its lifespan, while ensuring better air quality in the kitchen.
- Number of grease filter : 4
- Washable grease filter in the dishwasher: yes, offers easy and economical maintenance. It can be simply removed and cleaned in the dishwasher, allowing regular maintenance effortlessly.
- Charcoal filter: optional, effectively absorbs cooking odors, filtering out smelling particles before recirculating purified air in the kitchen.
- Number of carbon filters : 4
- Charcoal filter renewal: Boulanger advises you to change the carbon filter(s) when it is saturated, usually every 6 to 12 months depending on the use. A saturated filter loses efficiency to eliminate cooking odors, so its replacement guarantees optimal air purification.
- Check valve: yes, prevents the return of bad odors or unwanted drafts in the kitchen.

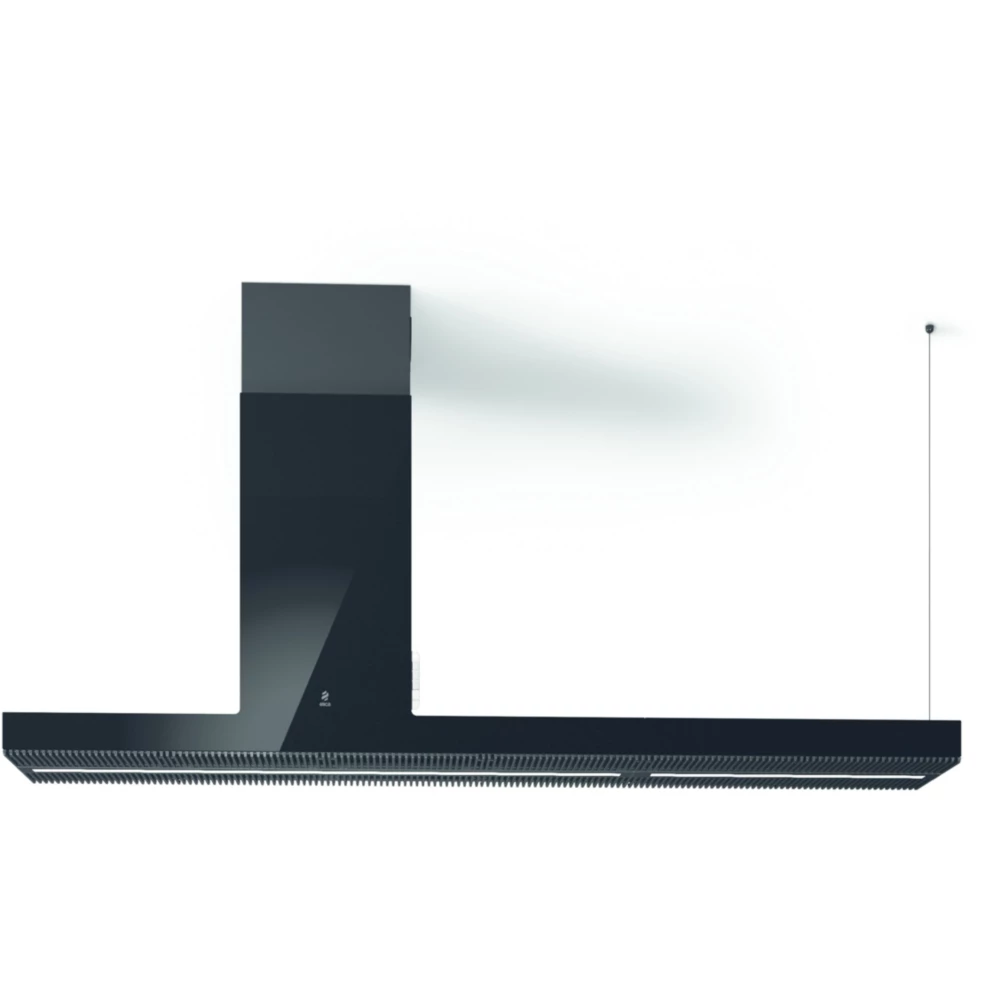

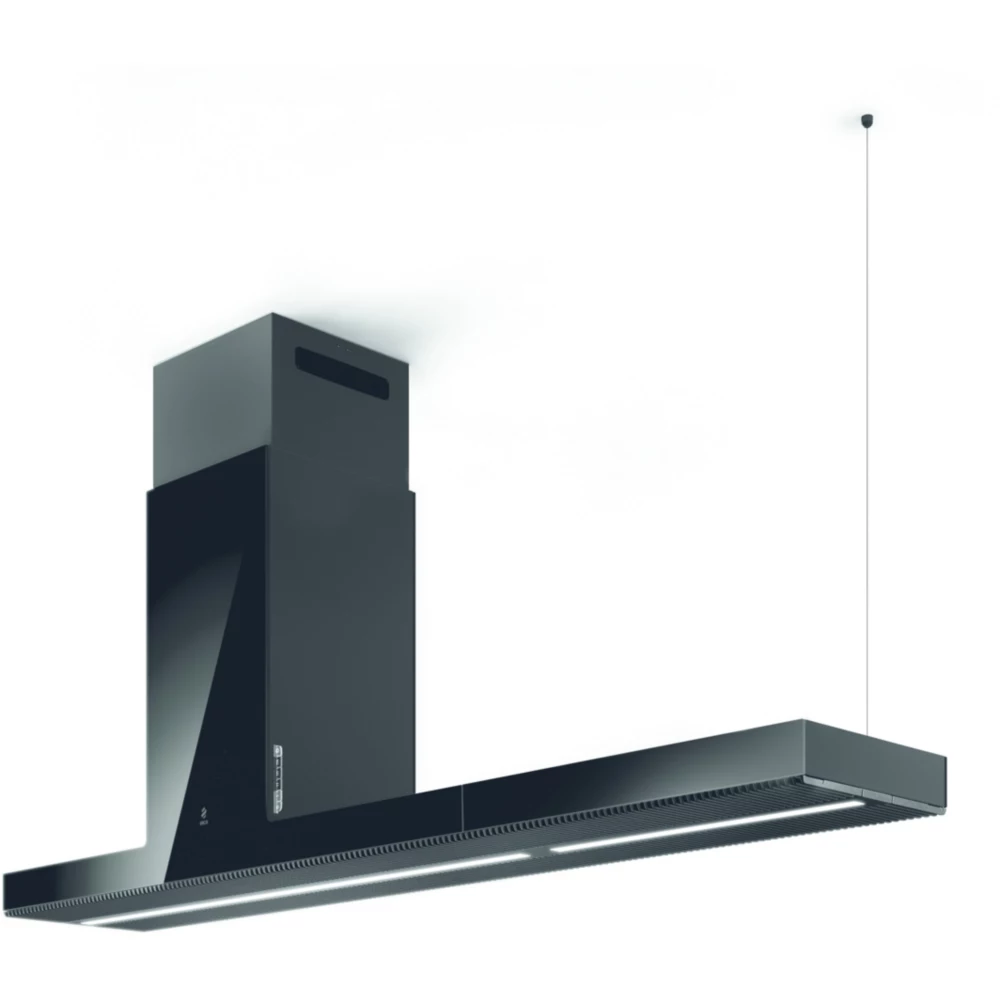

A serene, elegant and sublimated kitchen by all the ingenuity of Elica, it is possible thanks to the Haiku Island 180 hood.
Performance and comfort in the kitchen
A true design object inspired by the elegance and simplicity of Japanese haikus, Elica’s Haiku Island 180 hood lands elegantly above your hob to get rid of discreetly and effortless kitchen smells. Its powerful suction traps odors and fats with an ultra-efficient suction system signed Elica, while its optional charcoal filter eliminates odors.
Sharp and high-performance functions make the Haiku Island wall hood an intuitive device and at your service: the two booster functions and their airflow up to 720 m3/h increase the power of the device to optimally suck up vapors and odors for a few minutes. Its basic power gives you carte blanche for all your recipes: the Haiku Island hood of Elica delivers an airflow of 120 to 410m3/h.
A concept at the forefront

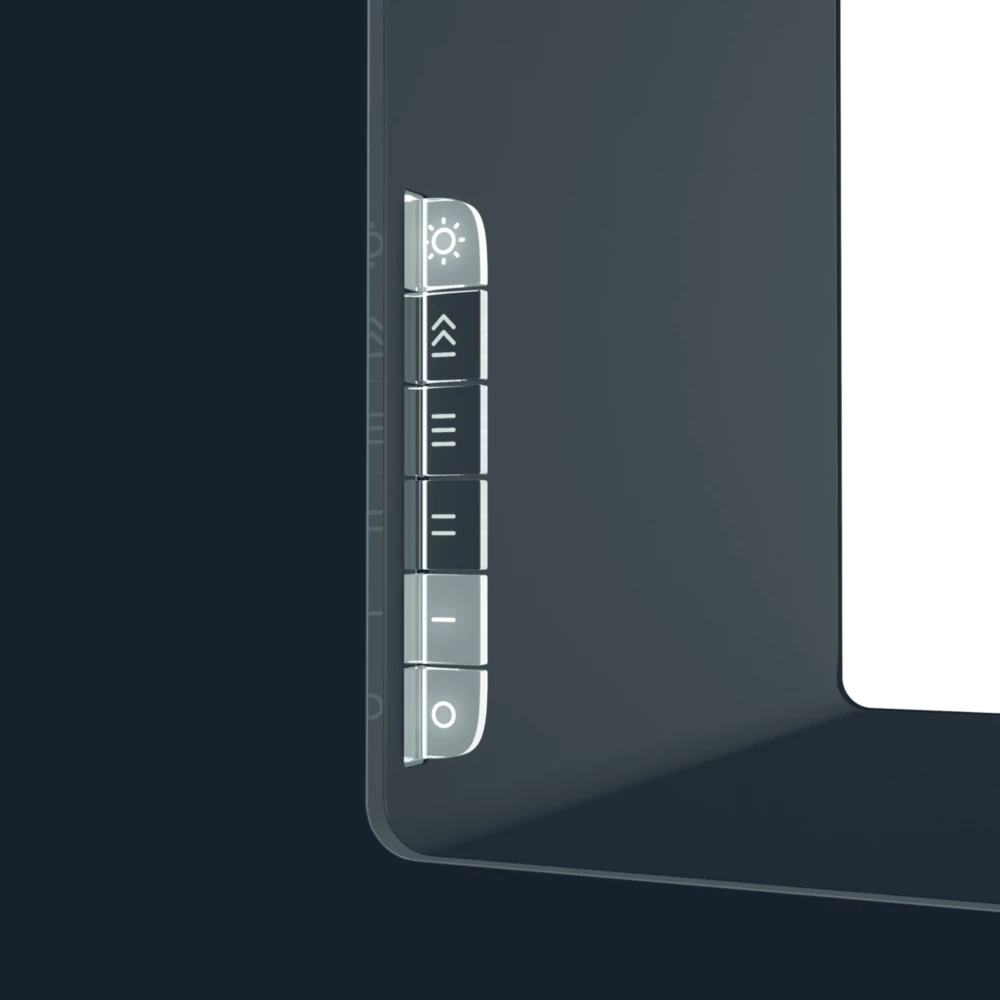

Designed to blend into your home with discretion and elegance, Elica’s Haiku Island 180 hood is made of noble and innovative materials. Result: matte sandstone, white krion and black glass for a modern, pointed and stylish look. The most of this device more than a meter wide: its intuitive touch keys, which allow you to control the power of your hood with your fingertips.
Designed to make your daily life easier, the Haiku Island wall hood is equipped with impressive power to adapt to your rhythm, desires and needs. Its grease metal filter is removable for simple cleaning and long-lasting use while its optional long-lasting carbon filter gives you exemplary performance.
